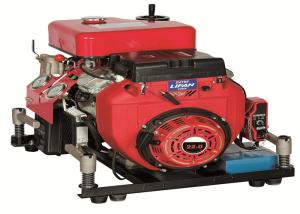

Middle Pressure Diesel Portable Fire Pump , Middle Flow Portable Fire Pump

  • 1
  • 2

Brand Name : Jindun

Model Number : JBQ6.0/14.5-L

Certification : ISO

Place of Origin : China

MOQ : 1

Price : USD

Payment Terms : T/T

Supply Ability : 300/year

Delivery Time : 3months

Dimension : 660×600×660mm

Net weight : ≤78kg

Highest lift : 80m

Rated pressure : 0.6Mpa

Cylinders : Double cylinder

Water pump : Single-stage

flow rated : 900L/min

suction depth : 9m

Contact Now

9m Maximum suction depth Middle pressure middle flow Portable fire pump Water diversion time≤20s

Dimension 660×600×660mm
Weight ≤78kg
Rated flow rated 900L/min
Highest lift 80m
Rated pressure 0.6Mpa
Inlet pipe diameter φ80mm
Outlet pipe diameter φ65mm
Water gun nozzle diameter φ19mm
Connection method Threaded type
Maximum suction depth 9m
Water diversion time ≤20s
Startup mode Hand / electric start
Engine model 22HP,2V78F
Water pump Single-stage

Middle Pressure Diesel Portable Fire Pump , Middle Flow Portable Fire Pump
